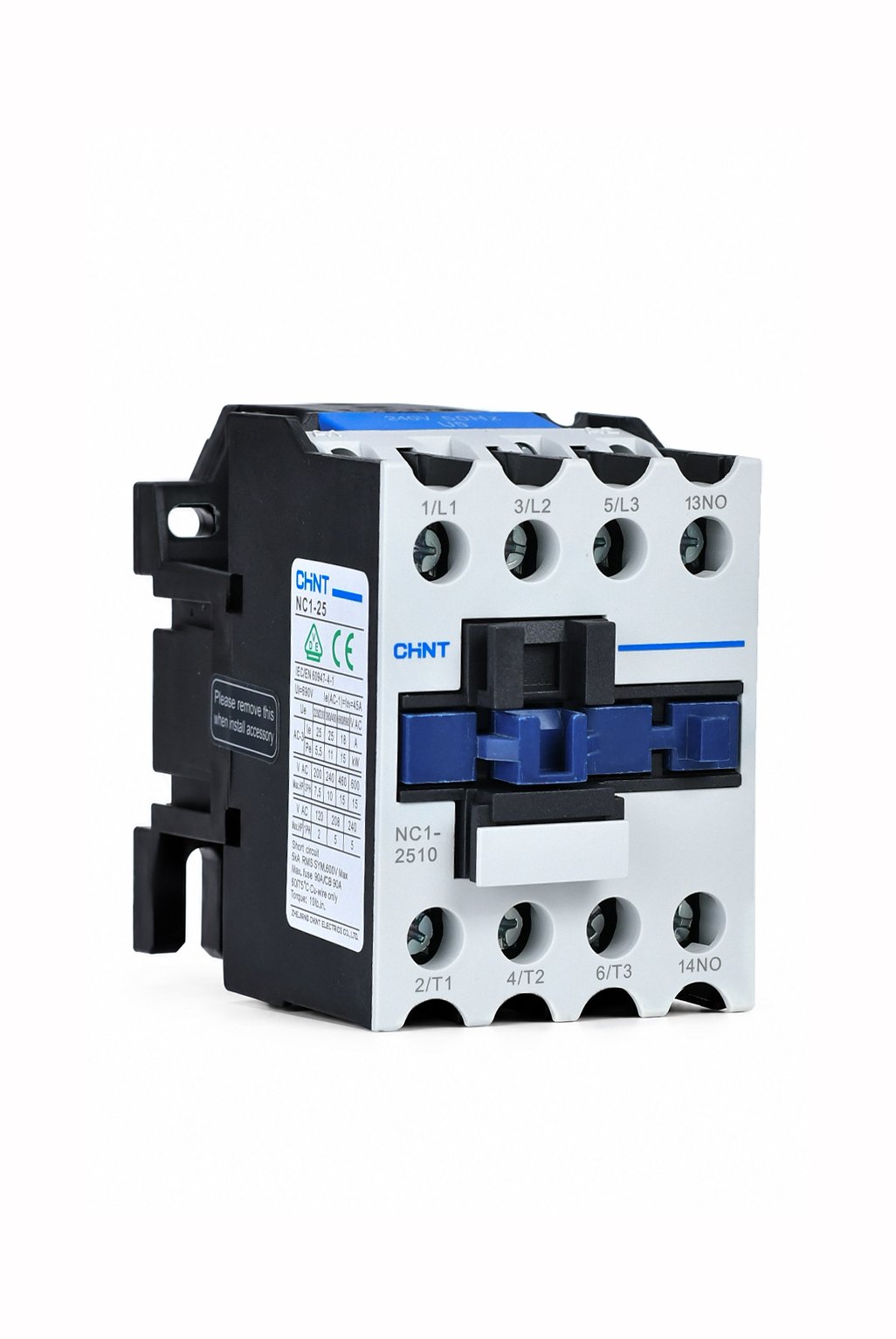

CHINT NC1-2510 3-Pole AC Contactor, 240V 50Hz Coil

The CHINT NC1-10 series three-pole AC contactor is used for switching circuits remotely and for starting and controlling AC motors. It has three normally open main contacts, one built-in normally open auxiliary contact and a 240V AC 50Hz coil. It is built to IEC/EN 60947-4-1, mounts on a DIN rail or by screws, and works with F4 auxiliary blocks, time-delay modules, interlocks and NR2 overload relays.

Specifications

• Brand & Series: CHINT NC1 Series
• Product Type: 3-Pole AC Contactor
• Pole Configuration: 3 Pole (3 NO Main Contacts)
• Built-in Auxiliary Contacts: 1NO (1 Normally Open)
• Available Ratings (Ie / Ith): 9A/20A (NC1-0910), 12A/20A (NC1-1210), 18A/32A (NC1-1810), 25A/40A (NC1-2510), 32A/50A (NC1-3210), 40A/60A (NC1-4010), 50A/80A (NC1-5010), 65A/80A (NC1-6510), 80A/125A (NC1-8010), 95A/125A (NC1-9510)
• Motor Rating (AC-3, 380/400V): 4kW (0910), 5.5kW (1210), 7.5kW (1810), 11kW (2510), 15kW (3210), 18.5kW (4010), 22kW (5010), 30kW (6510), 37kW (8010), 45kW (9510)
• Control Coil Voltage (Uc): 240V AC, 50Hz
• Rated Operational Voltage (Ue): Up to 690V AC, 50/60Hz
• Rated Insulation Voltage (Ui): 690V
• Rated Impulse Withstand Voltage (Uimp): 8kV
• Compliant Standard: IEC/EN 60947-4-1
• Utilization Category: AC-3, AC-4, AC-1
• Mounting: Standard 35mm DIN rail (75mm for 80A/95A frames) or direct screw mounting

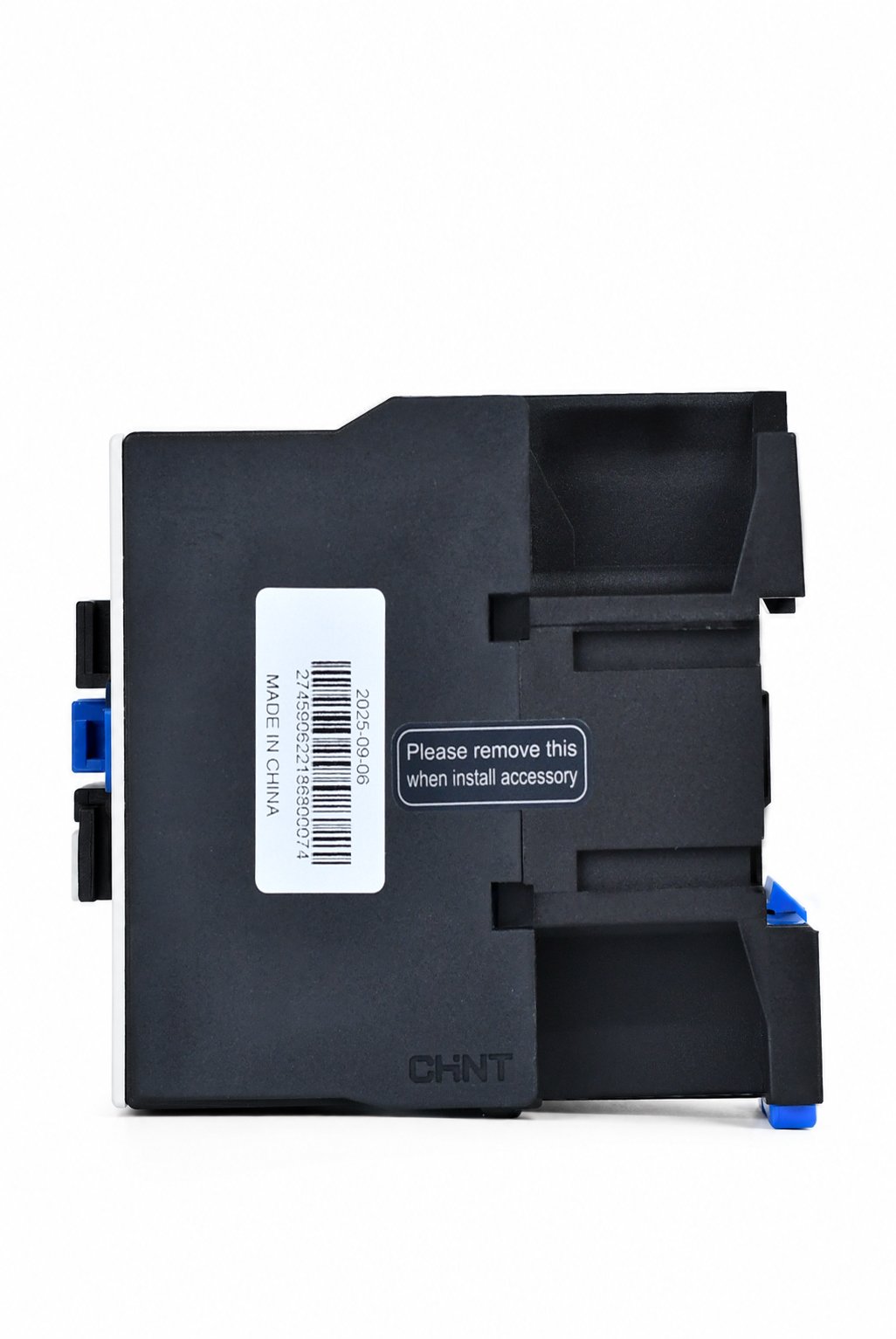

• Accessories Compatibility: F4 auxiliary contact blocks, NST2 time-delay blocks, mechanical interlocks, NR2 thermal overload relays

Available in several sizes and ratings. Request a quote on WhatsApp for current prices.

Installation should be done by a qualified electrician, with the power off at the main switch. Clean with a dry cloth only.
