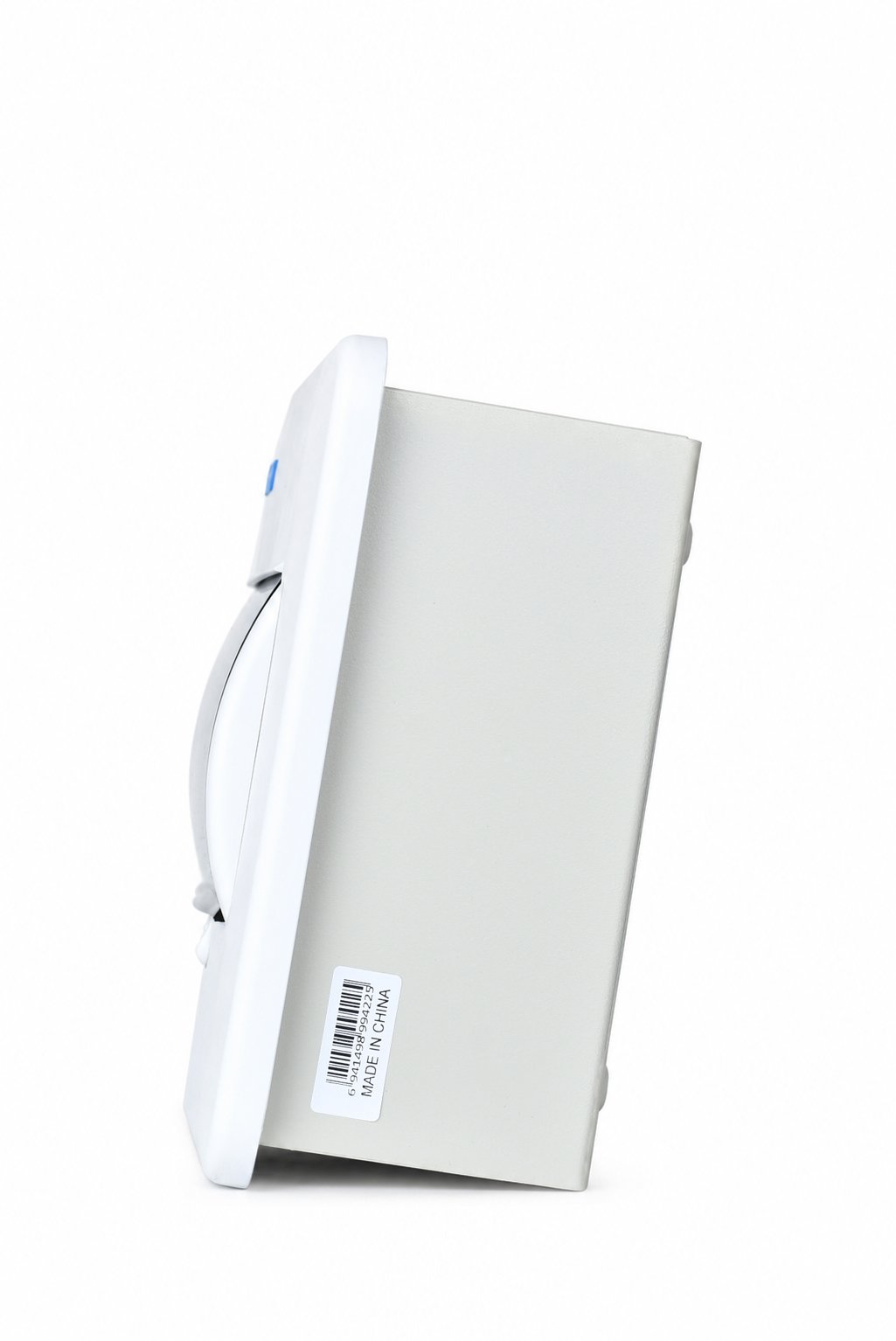

CHINT NX8 Series Flush Consumer Unit

The CHINT NX8 series consumer unit recesses into the wall. It has a metal base, a plastic front frame, a smoked see-through self-locking flap with a neon power light, a DIN rail and neutral and earth terminal blocks. It handles up to 100A single-phase at 230V, is rated IP30, is built to IEC 61439-3, and comes in 4, 6, 10, 12 and 18 ways.

Specifications

• Brand & Series: CHINT NX8 Series
• Product Type: Flush-Mounted Modular Consumer Unit Enclosure (Body)
• Enclosure Construction: Metal base structure with plastic front frame and cover
• Door / Window Style: Flexible self-locking smoke-tinted transparent flap with neon power indicator
• Available Configurations: 4, 6, 10, 12, 18 Ways
• Rated Operational Voltage (Ue): AC 230V
• Rated Frequency: 50Hz / 60Hz
• Max On-Load Current: 100A (Single-phase)
• Protection Degree: IP30
• Compliant Standards: IEC 61439-3 (EN 60670-24)
• Mounting: Flush Mount (Wall Recessed)

Available in several sizes and ratings. Request a quote on WhatsApp for current prices.

Installation should be done by a qualified electrician, with the power off at the main switch. Clean with a dry cloth only.
